The transmitter, thanks to its internal sensors, it's equipped with the special "roll-over protection" function. It understands when the remote control is overturning, for example a sudden fall by the user, and immediately inhibits all maneuvers until reaching the emergency state by switching off the whole system, in this way accidental inputs are removed.

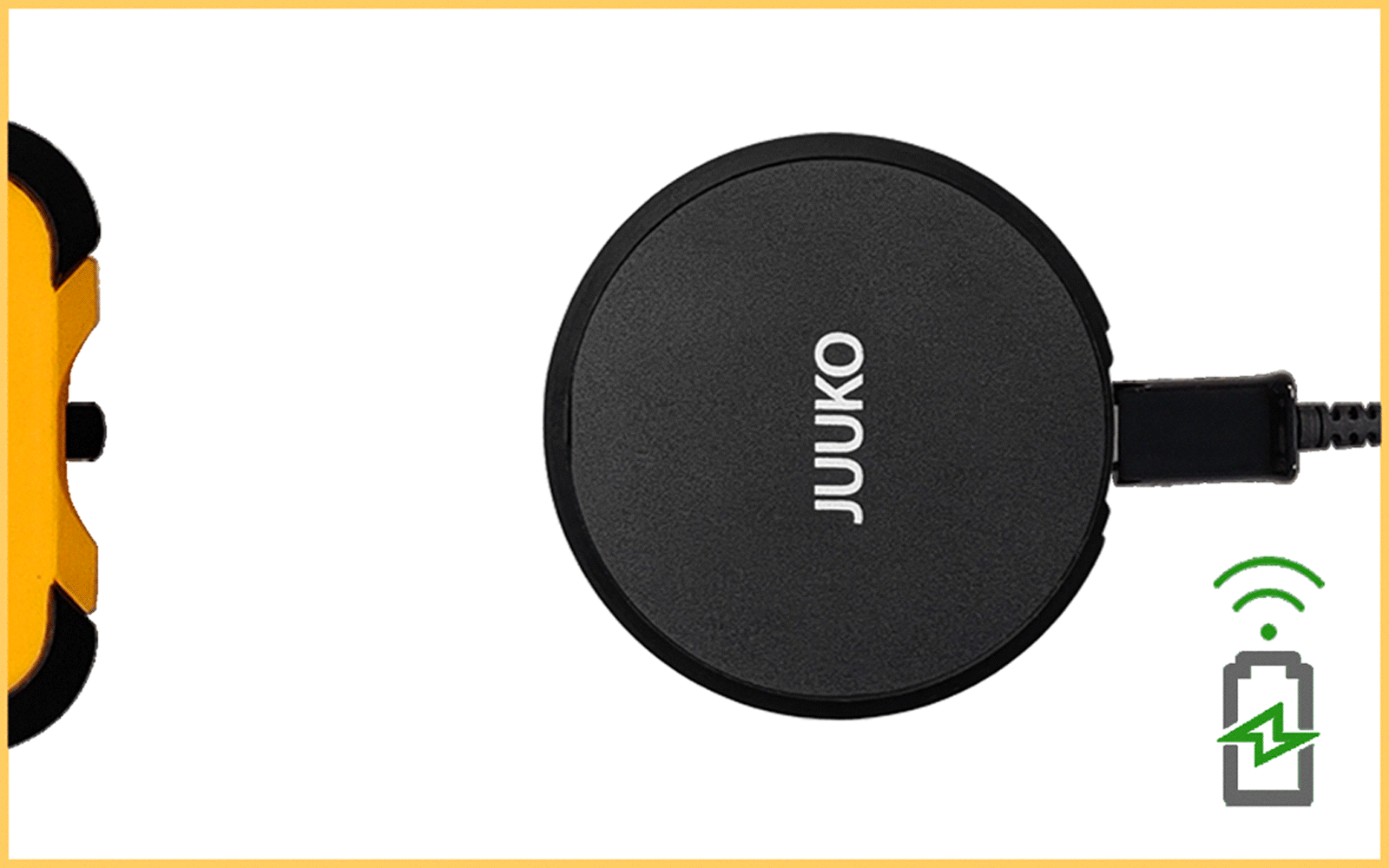

QI CHARGING
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.
Biaxial joysticks
With the use of the biaxial joysticks, the control of maneuvers will always be fluid and accurate, with the chance of adjusting the speeds and, also, to perform precision micro-shifts.
| Push-buttons Configuration | -1 START push-button -1 EMO (STOP) mushroom -1 biaxial joystick (lift 5 speeds) -1 biaxial joystick (rotation 5 speeds, trolley 5 speeds) -2 switches (II rope / IV rope, enable double trolley) -2 pushbuttons (slewing break control, AUX) |
|---|---|
| Number of Available ON/OFF Command | Max. 20 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0650 > 434.7650 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA)1.5V / NiMH(AA)1.2V x 4 |
| Dimensions | 200 x 141.3 x 139 mm |
| Weight | approx. 1036g |
| Degree Protection | IP65 |
| Housing Material | PA66 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
|
Bag for JM Series |
|
|
Pouch belt for JM Series |
|
Shoulder strap for JM Series |
|
|
QI pad wireless charging + micro USB cable Pad dimensions: 77 x 55 x 6.5 mm |
|
External Antenna SMA connector |
|
