HV-12

The MOSFET receiver is equipped with with terminal screws for an easy connection to any system. The installation can be done by 4 corner brackets, or through fastening to the center nut. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.

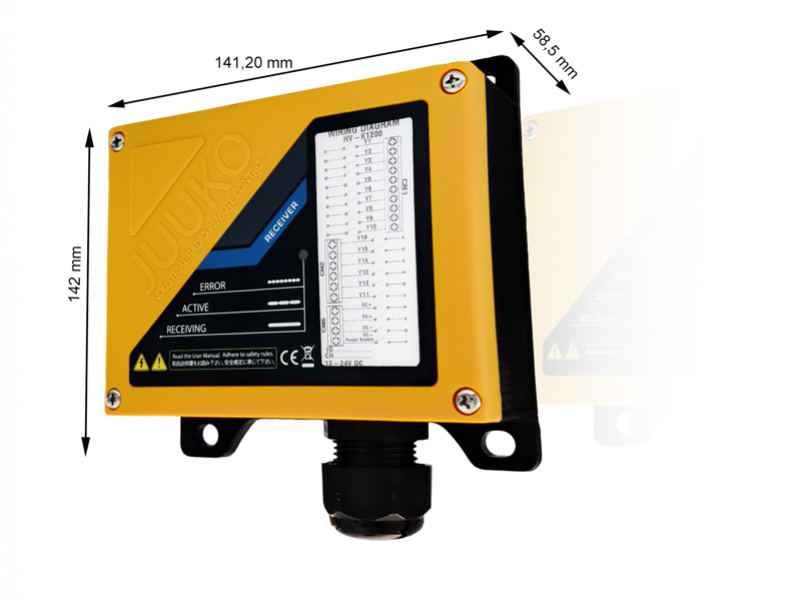

Small Dimensions

Small Dimensions

The HV MOSFET series receiver unit has been designed to minimize the aesthetic impact on the on-board system thanks to its small size.

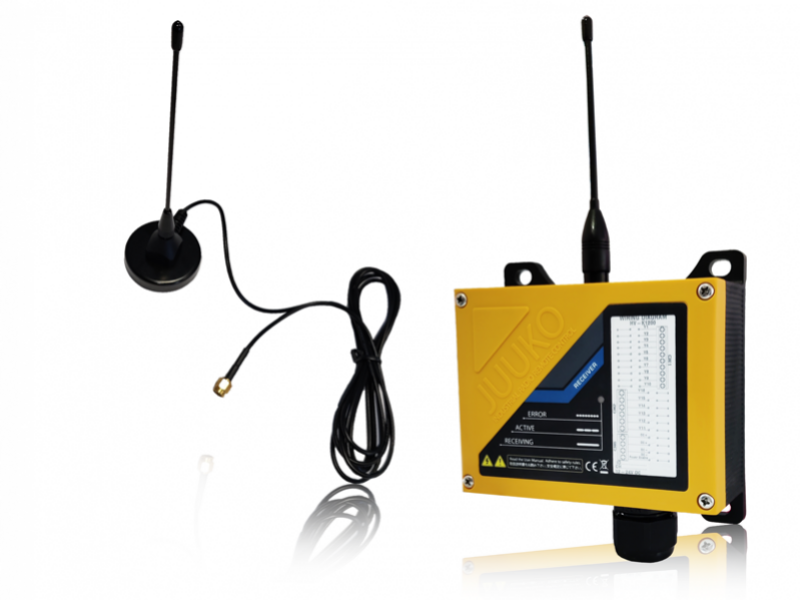

Receiver Antenna

Receiver Antenna

The receiving antenna can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.

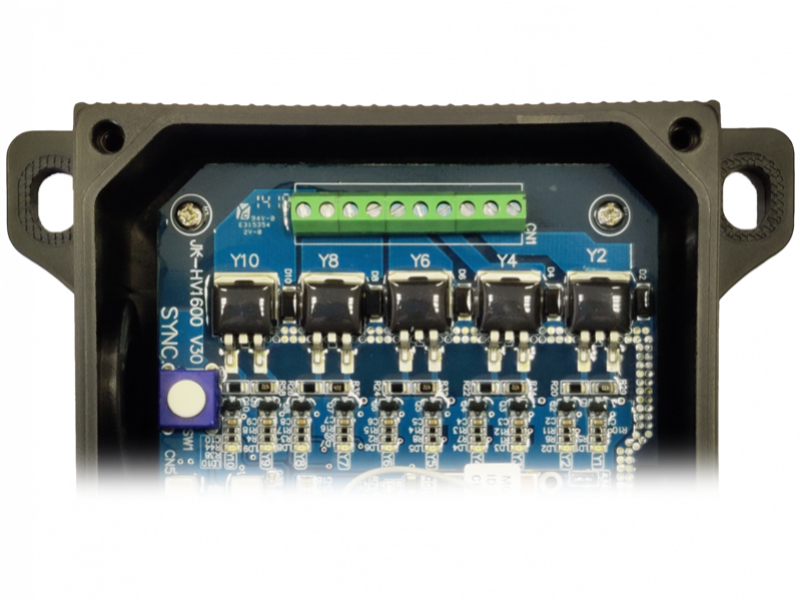

Mosfet Outputs

Mosfet Outputs

Thanks to the Mosfet outputs, the receiver has no internal mechanical components, which makes it ideal for installation in situations where the strong vibrations are presents and constants.


Frequency 433.0525 > 434.7775 MHz
Modulation 4GFSK
Sensitivity -112dBm at 1,2Kbps
Control System PLL
Antenna Impedance 50 Ohm
Command Response Time 50 > 100 mS
Power Supply 12/24 Vdc
Antenna External
Standby Current Consumption 16mA at 220Vac
Operating Temperature -10°C > +75°C
-14°F > +167°F
Connecting Interfaces Multi-core table
Outputs 12 configurable 5A mosfets
Dimensions H142 x L141,2 x P58,5 mm
Weight 800g
Housing Nylon and glass fiber IP65 (PA6 30% GF)
