HS BLACK

The receiver is equipped with pull-out terminals for an easy connection to any system. The installation can be done by 4 corner brackets, or through fastening to the center nut. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.

Small Dimension

The HS BLACK series receiver is the middle size unit. It has been designed to have small dimensions and minimize the aesthetic impact on the on-board system. In the middle of the back part there is a hole for stud bolts M10 size.

Distance between mounting brackets:

  • Width             156 mm
  • Height            165 mm

Receiver Antenna

Receiver Antenna

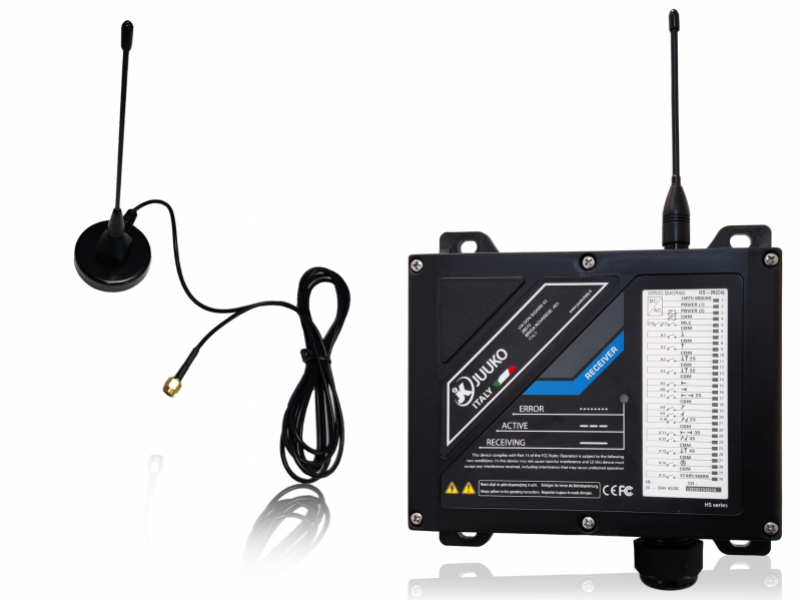

The receiving antenna can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.


Frequency 433.0525 > 434.7775 MHz
Modulation 4GFSK
Modulation -112dBm a 1,2Kbps
Control System PLL
Safety Performance of the STOP
function (EN ISO 13849-1)		 Pl d
Antenna Impedance 50 Ohm
Command Response Time 50 > 100 mS
Power Supply 24/264 Vac/dc
OPTIONAL: 12 Vdc
Power Consumption AC:8,3W / DC:12.8W
Antenna External
Standby Current Consumption 0.97W
Emission Power + 10dBm
Operating Temperature (-20°C)~(+55°C) / (-40°C)~(+65°C)
(-4°F)~(+131°F) / (-40°F)~(+149°F)
Connecting Interfaces Multi-core cable
Relays 2 STOP + max. 13 function (1 NO 5A 250Vac)
Degree Protection IP65
Dimensions H184 x L190 x P64 mm
Weight 1795g
Housing Nylon e fibra di vetro IP65
